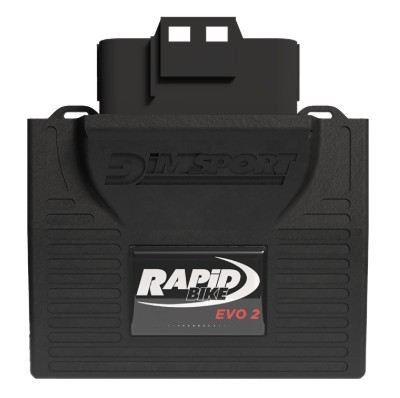

Rapid Bike electronic unit EVO 2 (with cable plug and play) for KTM 890 Adventure 21-25 (cod. KRB-EVO2-001)

RapidBike line now includes solutions for any need and requirement:


RapidBike EASY, "Plug & Play AFR Modulator": management of oxygen-sensor and air temperature.



RapidBike EVO, "Total Injection Control": dynamic and multi-map management of oxygen sensor, self-adaptive injection, management of limiters.

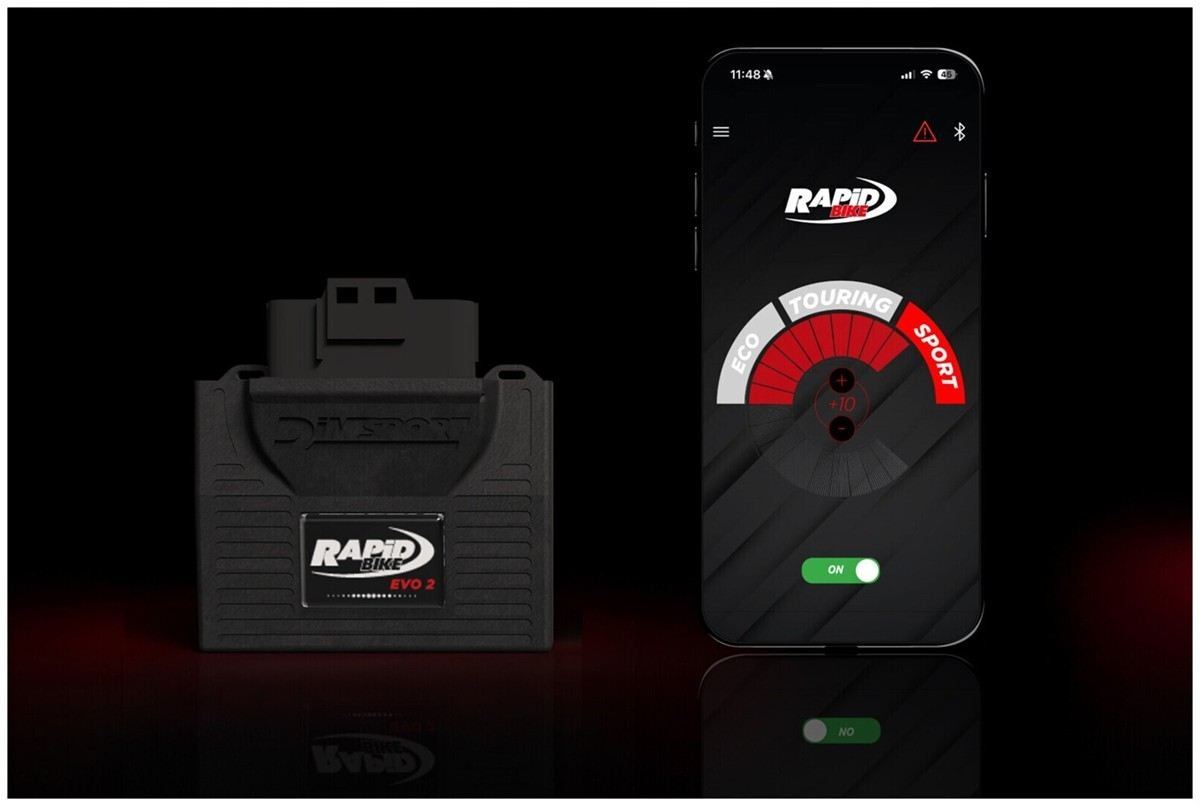

RapidBike EVO 2, "It retains all the features of the EVO, with the added ability to select 3 customizable riding modes via the APP, each with 20 intensity levels:
Eco: Reduced performance to significantly save on consumption
Touring: Optimized for urban riding, offering a balance between performance and efficiency
Sport: Maximum power and performance for a sporty riding experience
A diagnostic function has also been introduced, allowing you to read the main error codes from the original ECU and delete them if necessary."


RapidBike RACING, "All-In-One Professional Racing Module": dynamic and multi-map management of oxygen sensor, self-adaptive injection, ignition (spark advance), management of limiters (even pit-lane RPM feature), engine braking control while decelerating.

RapidBike RACING 2, "It retains all the features of the RACING, with the added ability to select 3 customizable riding modes via the APP, each with 20 intensity levels:
Eco: Reduced performance to significantly save on consumption
Touring: Optimized for urban riding, offering a balance between performance and efficiency
Sport: Maximum power and performance for a sporty riding experience
A diagnostic function has also been introduced, allowing you to read the main error codes from the original ECU and delete them if necessari"

What's EXCLUSIVE:

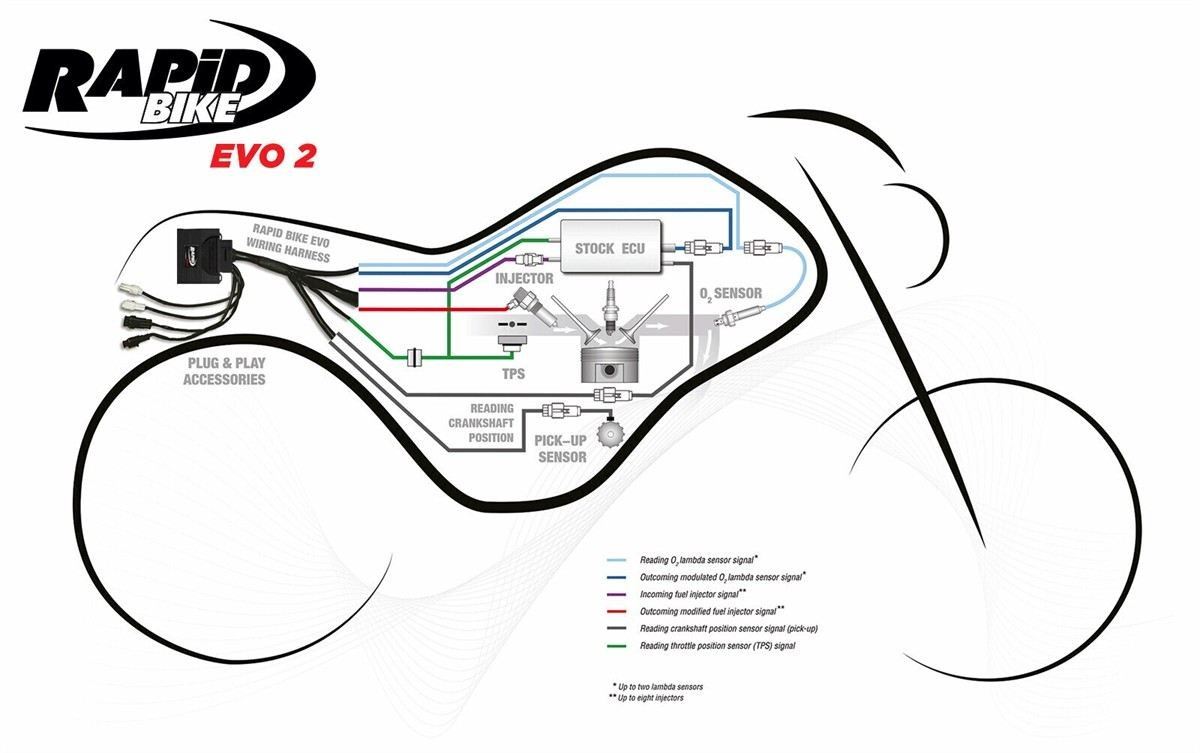

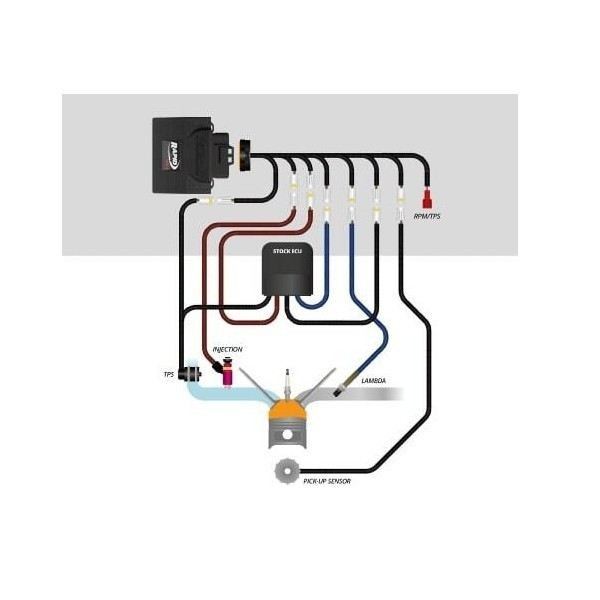

Evolution of the technology and experience gained through RapidBike1, 2 and 3 is an add-on module that interposes between the original ECU and the injectors.


It combines extraordinary high performance with user-friendliness thanks to the self-adaptive feature: RapidBike EVO does not require additional modules to reach this performance, as it includes all the required features in its own working.


Objective of this application is "total injection control", which means the total control of the air/fuel ratio through the management of all the injectors (up to eight) and of the oxygen sensors. RapidBike EVO allows to work on injection timing (range from -100% to +150% compared to the original parameters) and on air/fuel ratio related to carburetion.


When driving the motorbike, the self-adaptive feature determines the automatic self-correction of the air/fuel ratio maps: this active management is added up to the pre-set parameters. The adjustments set by RapidBike EVO improve the engine efficiency in order to reach the best performance.


The self-correction process is set in multipoint technology according to RPM and TPS, for the whole range of the engine working, even when the original RPM limiter is raised (when available).







The chart  displays the definite progressive improvement of the map from 0 (red trace) after 50 km (green trace) and after 200 km (brown trace). Other remarkable features are the possibility to raise the RPM limiter (up to + 1.000 RPM) and the cut of the speed limiter.


RapidBike EVO also supports the management of multiple maps, which means the possibility to calibrate and activate two sets of injection maps with different self-adaptive settings in order to "change air/fuel ratio" with a simple switch.


For two-cylinder engine motorbikes, RapidBike EVO allows to set a map with specific self-adaptive corrections for each cylinder to optimize the engine efficiency.



By using the software downloaded from the website, through the USB device provided or purchased for the RB Evo kits before 12/02/2011, the rider can tune his own map and set new self–adaptive parameters anytime, so to get the performance desired.
