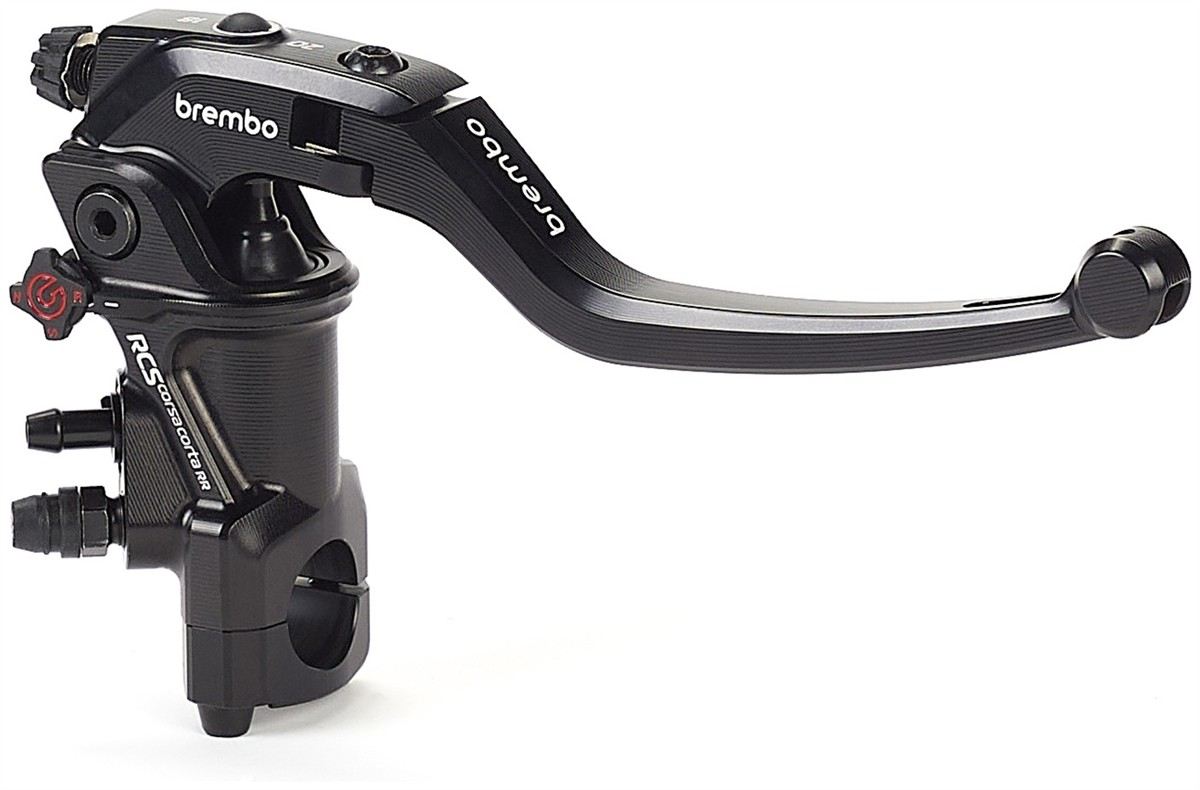

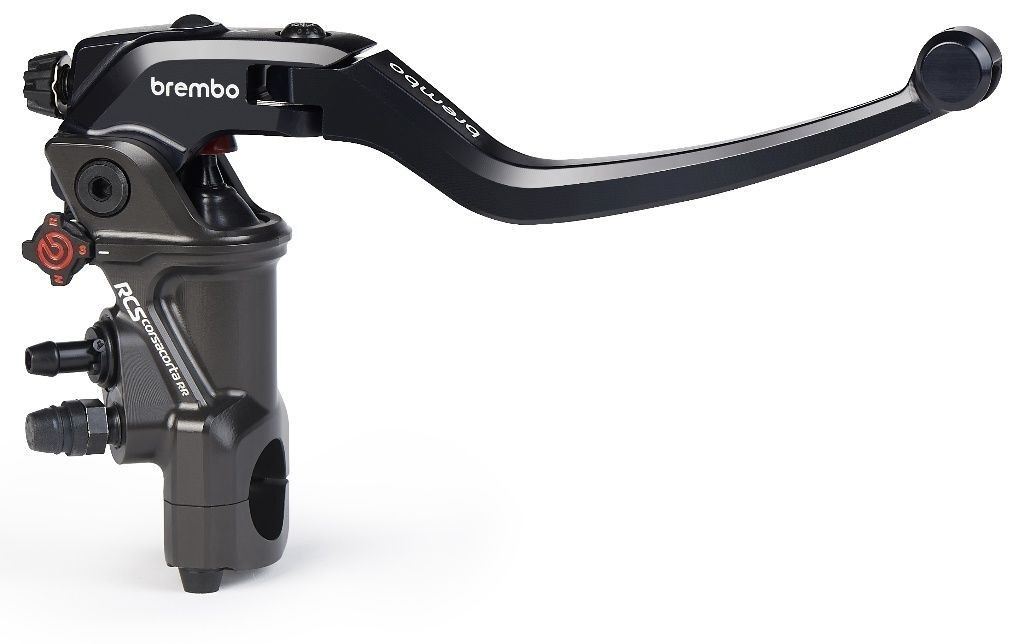

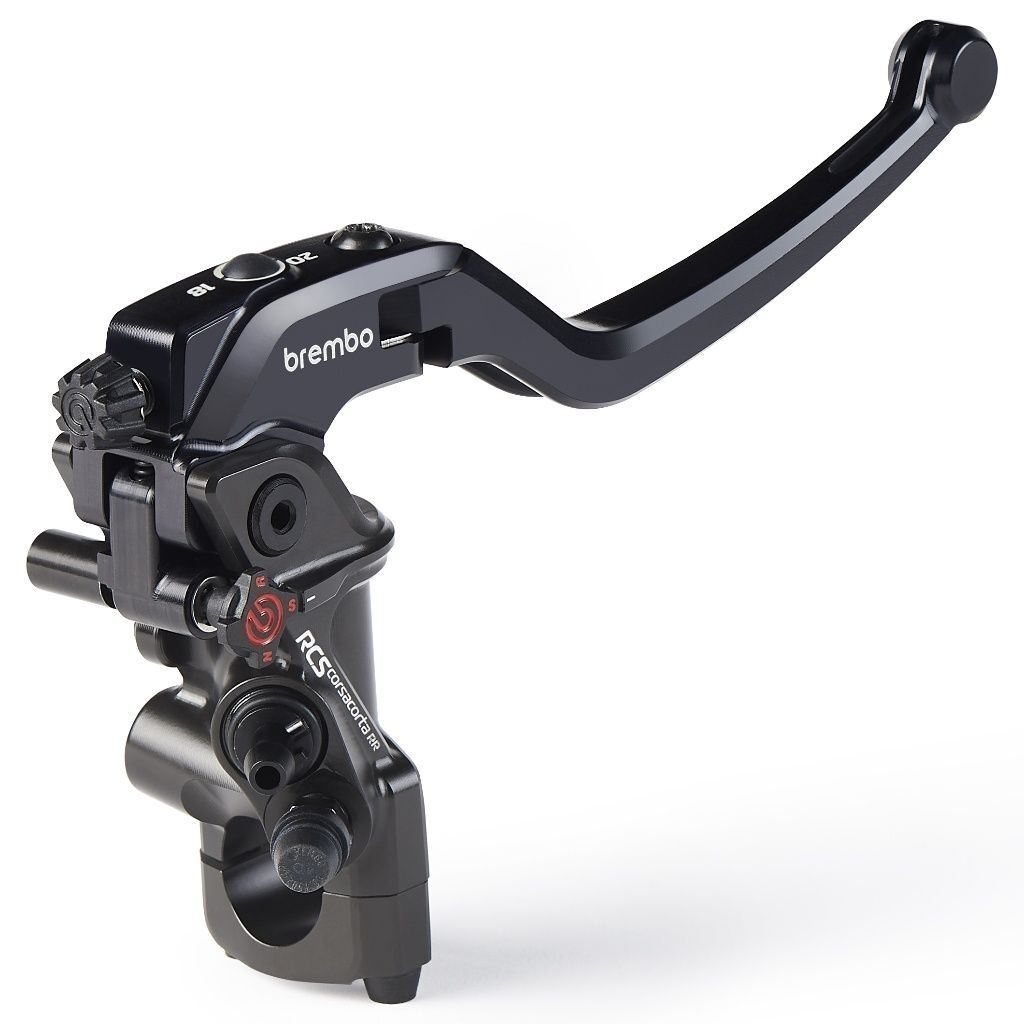

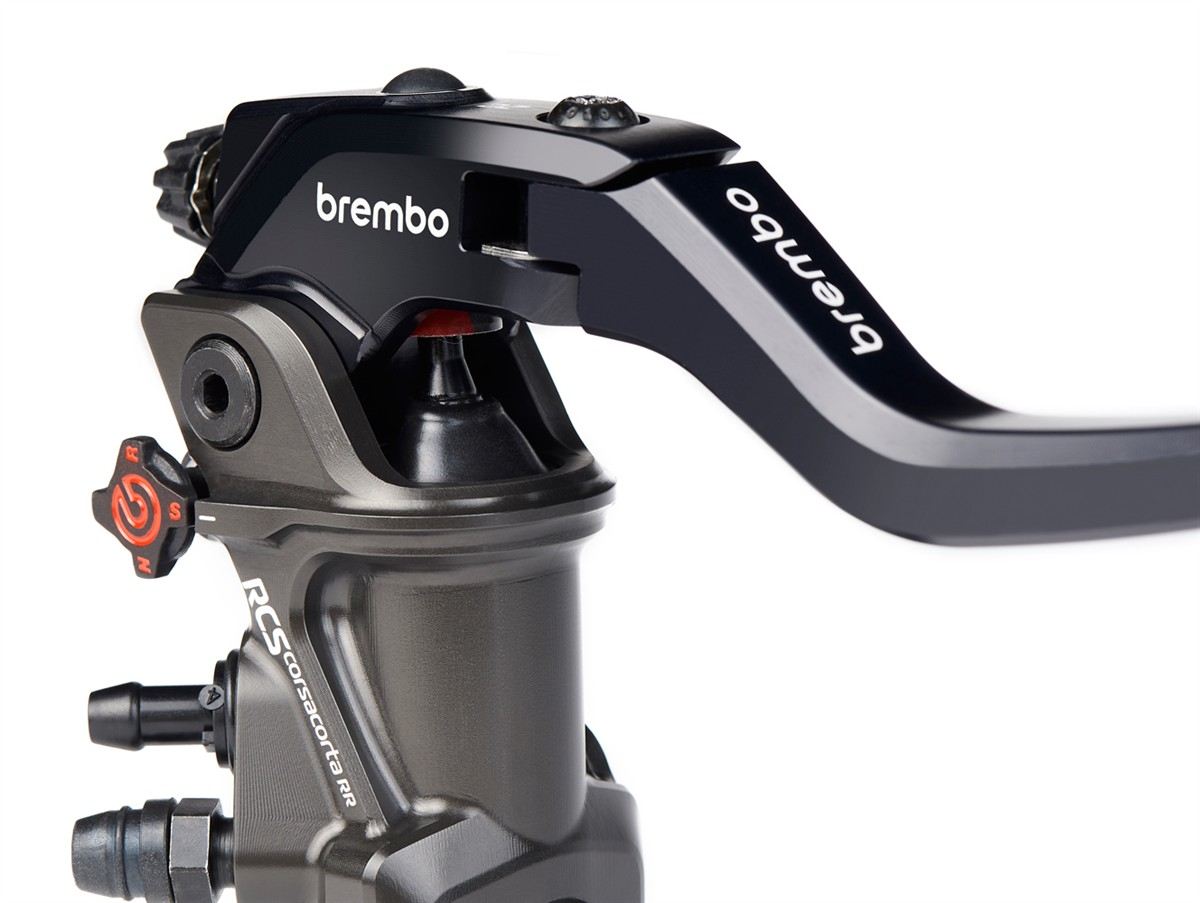

Radial Brake Master Cylinder Brembo Racing 19 RCS CORSA CORTA RR fold-up lever 18-20 ratio

DESCRIPTION:

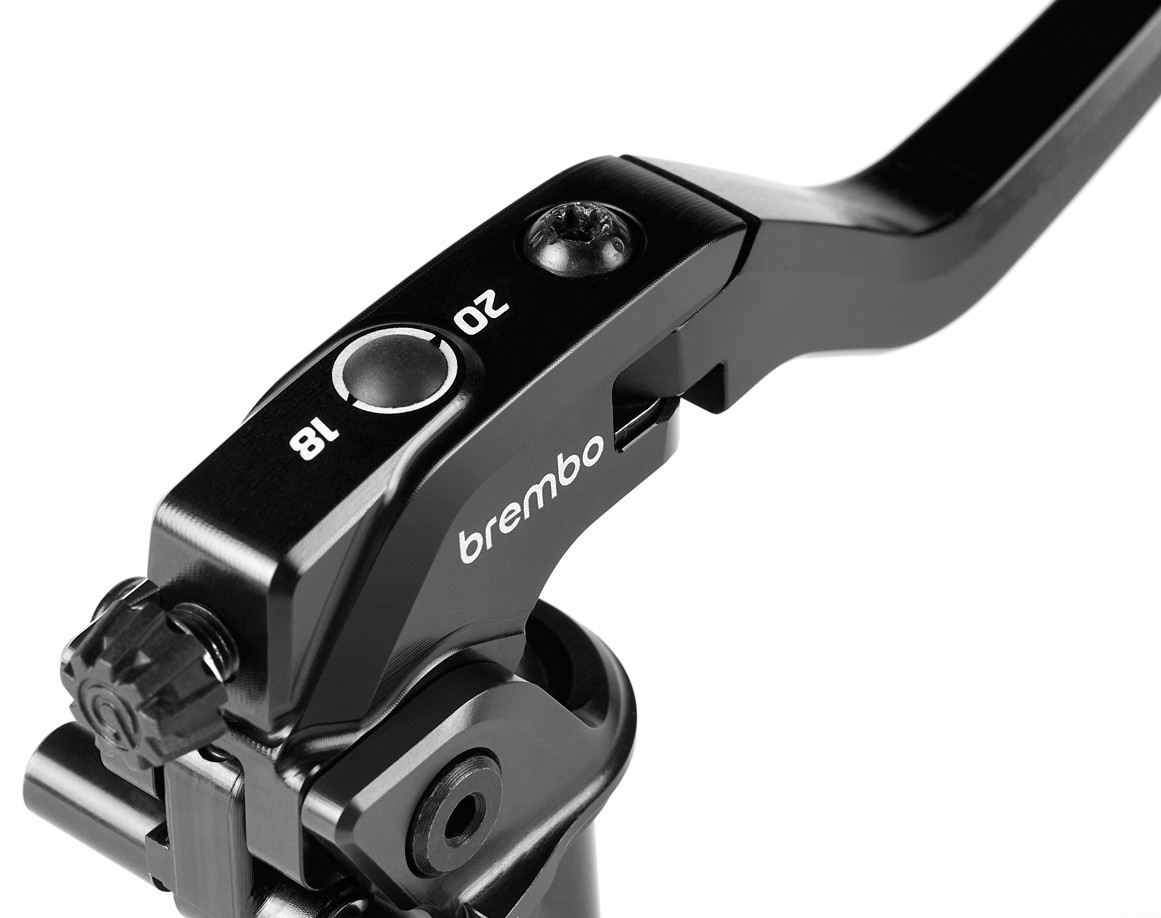

The Brembo Racing RCS Corsa Corta RR master cylinder has completly CNC body and brake lever similar to the brake master cylinders used in MotoGP and SBK. Like her standard versione has the possibility to calibrate the idle stroke on three positions (R-S-N), to obtain the maximum feeling of the braking bite according to this diagram: Position R "race" the idle stroke is minimized, the lever will be more reactive; Position S "sport" the idle stroke is in an intermediate position, as well as the feeling of the lever; Position N "normal" the idle stroke is greater, so there will be a wider modulation and a softer braking bite. The setting of the Idle Stroke is added to two other setting options: the adjustment of the lever distance from the handlebar and the RCS (Ratio Click System) system, which allows to change the lever center distance between two different positions: 18 mm . for maximum modulability and 20 mm. for maximum reaction of the braking system.

FEATURES:
Ø Pistone :   19 mm
Interasse :   18-20 mm
Variable lever center distance and adjustable idle stroke
Compatible with ABS system
Tightening torque for bleeding screw: 12÷16 Nm
Microswitch included in the package

Not suitable for Cruise Control
ATTENTION: complete lever spare part not available, overhaul needed to replacing
